ThreeBond 1160

Non-Silicone Sealant for Automotive Electronic Components (ECU Case / Battery Pack Sealing)

Features
  • Excellent heat resistance
  • Excellent flexibility
  • Tin-free
  • Moisture-curing
  • Contain low molecular weight cyclic siloxanes
  • Solventless, Oil resistance
  • High elongation

ThreeBond 3953

High Strength Two Component Room Temperature Curing Type Elastic Adhesive (SN-Free Type)
Features
  • Strong adhesion to a wide range of material
  • After curing, it become rubber-like strong elastic material
  • Light or heat curing equipment not required
  • The pot life (gel time) after mixing of the two components is relatively long, thereby allowing sufficient time for application
  • No organotin compounds which is restricted by EU environmental regulation
  • Good leveling performance

ThreeBond 2045B & ThreeBond 2145B

Two Component Room Temperature – Curing Heat Dissipation Epoxy Resin
Features
  • High strength
  • High thermal conductivity
  • Incombustible
  • Two-component mixture curing
  • Thermal conductivity 2.1 W/m･K and equivalent to UL94 V-0
  • Possible to cure in room temperature environment (no need heating facility)
  • Epoxy type which shows high adhesive strength
Application
  • Heat dissipation in cells

ThreeBond 1360F

High Heat Resistant Anaerobic Adhesive (Stator Core Adhesive Lamination)

Features
  • Prevent screw from loosening
  • High-strength type anaerobic adhesive
  • Good durability for high temperature and heat cycle environment (Glass transition point: 165°C)
  • Excellent workability with low-viscosity property

ThreeBond 2235L & ThreeBond 2237J

Heat Curable One Component Epoxy Compound Resin (Motor Magnet Bonding Invertor Case Sealing)
Features
  • High Tg
  • High strength
  • High peel strength
  • Heat curing & excellent heat resistance
  • Excellent ATF resistance

ThreeBond 2280H

Heat Curable One Component Epoxy Compound Resin (Rotor Core Magnet Bonding)
Features
  • Heat curing
  • Excellent flowability
  • Possible to expand to approx 4 times of the resin’s original thickness and adhere
  • Possible to separate the adhesive application process and the volume expansion process
  • Excellent ATF® resistance

ThreeBond 1153E & ThreeBond 3175

Single Component Heat Curing/UV Curable Olefin Resin & Sealant
Features
  • Excellent flexibility & heat curing
  • Excellent heat & coolant resistance
  • UV curing
  • Excellent gas barrier
  • Excellent electrolyte resistance
Application
  • Sealing between separators
  • Fixing the edge of electrolyte film

ThreeBond 2049 & ThreeBond 2149

Two Component Room Temperature Curing Epoxy Resin
Features
  • High-stretch room temperature curing type resin to fix with composite materials/ thermal plasticity materials
  • High-stretch heat curing type resin to fix with multimaterials (Liquid type and sheet type)
  • Bonding of automobile body structure
  • Bonding of other members
  • Applicable product line-up for FIPG, CIPG, and screen printing processes
  • Excellent chemical resistance
Application
  • Good curability at room temperature
  • Flexibility and high adhesion

ThreeBond 3178

UV Curable Cured in Place Gasket (CIPG) Invertor Case Sealing
Features
  • Visible light curing
  • Excellent flexibility & instant adhesive
  • Fast curing & UV curing
  • Excellent resin adhesion
  • Suitable for CIPG application with UV irradiation curing process

ThreeBond 1227D

Dealcoholized Type One-Part Cold-Curing Silicone-Based Sealant (for FIPG)
Features
  • Excellent engine oil resistance
  • Excellent long-life coolant resistance
  • Dealcoholized type sealant
  • Excellent thermal resistance and cold resistance. It keeps rubber elasticity in a wide temperature range from -60°C to 200°C
  • Non-sagging type
  • Sealing surfaces of vehicle engine oil pans, chain cases, etc

ThreeBond 1530

Single Component, Moisture Curable, Elastic Adhesive
Features
  • Solvent-free and environment-friendly
  • Odorless
  • Has initial tackiness therefore temporary fixing not required
  • Elastic adhesive with good peel strength & vibration and impact stress relaxation
  • Good adhesion to wide range of materials, including metals, plastics, rubbers, wood materials and inorganic materials
  • Bonding, sealing and potting of various materials

ThreeBond 2212B

Single Component Epoxy Resin
Features
  • Good sealing
  • For sealing relays
  • For moulding small parts

ThreeBond’s complete range of Pre-applied coating material eliminates the need of applying liquid sealants, adhesives or any mechanical locking or sealing device to threaded part during manual or automatic assembly.

Customizable to meet specific customer applications, these product are available with various strengths and temperature resistance ranges. Additionally, distinctive colors enable easy inspection and identification of different grades.

ThreeBond products are widely used in automobile, machinery, appliance electronics, telecommunication, high speed railway, and power transmission system.

Product Features & Benefits

  • Ready for assembly
  • Water based product – Environment-friendly
  • Brightly colored for easy identification
  • Non-tacky finish, dry-to-the-touch
  • Lock/seal in any position, No additional locking device needed
  • Can be applied on internal or external threaded fasteners
  • Products available for a wide range of bolt sizes

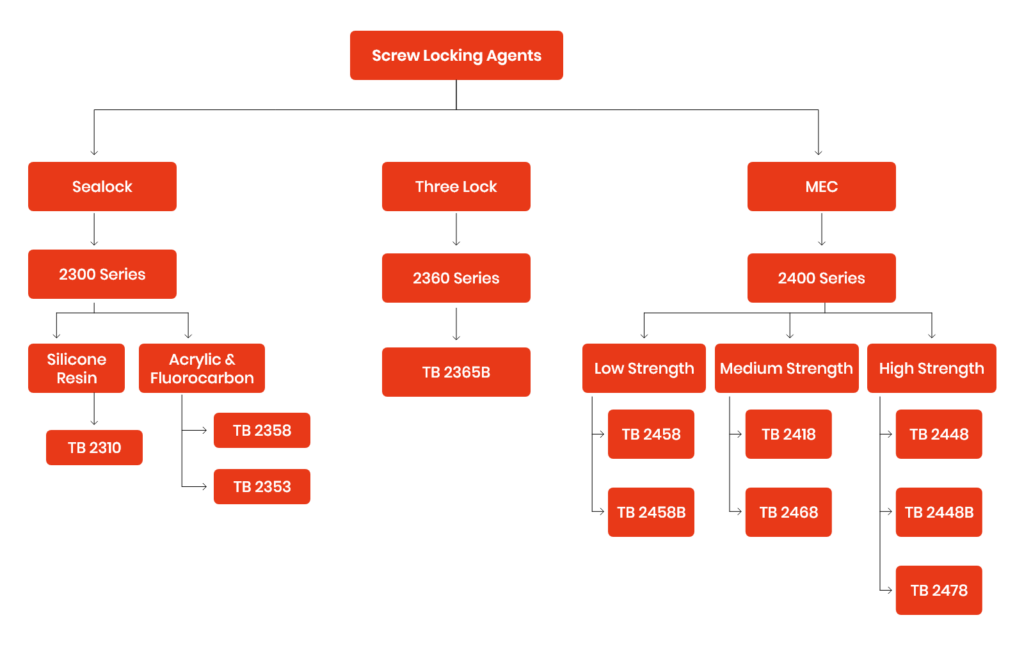

Our Sealants Products Lineup

Sealock

  • Both sealing and locking property
  • Low tightening resistance
  • Excellent heat, chemical resistance

ThreeLock- TB2365B

  • Base material is nylon
  • Imparts elasticity, wear resistance, corrosion resistance           and weathering resistance
  • Used in a wide range of temperature (-50 ~ 120oC)
  • Allows repeated use of coated screws

MEC

  • Micro EnCapsulation technique
  • Provide temporary to permanent locking, especially where       heavy vibration occurs frequently
